1.2.1.輸入：100-240VAC 50/60Hz Page 1

輸出：3-48VDC功率3-300W

1.2.2.功能特性：短路保護、過載保護、防雷擊

符合RoHS&WEEE環保、CEC節能指令

符合EMC、FCC電磁兼容

1.2.3.環境條件

使用-20~+45℃、10-90%RH

儲存-40~+75℃、10-90%RH

1.2.4.標準：UL1012/UL1310/UL60950/FCC PART15

EN60950/EN60335/EN55014/EN55022

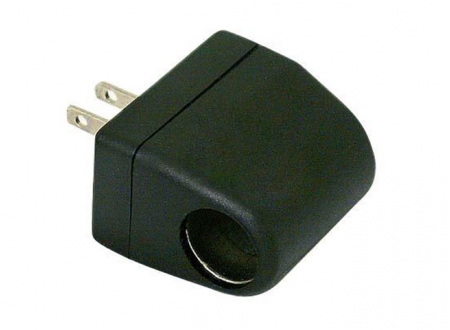

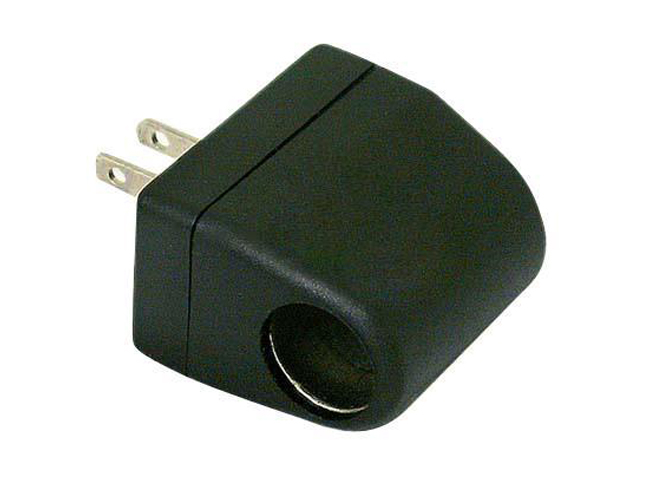

Part name/產品名: Switching Power Supply 開關電源

Model No./ 型號:

Design No./設計編號:

Customer Code 客戶代碼:

Customer Product No. 客戶產品編號:

Date/日期 :

SCOPE/描述:

This document details the electrical,mechanical and environmental,it is a Switching Power

Supply of 0-48V;0-15A;300Watts output,when 100V~240 VAC input,

本文明確了產品的電性規格,機械尺寸,環境條件,該產品輸入電壓范圍100V~240 VAC,輸出

電壓為:0-48V;0-15A;200瓦的開關電源

1.Electrical Characteristics/電器特性:

Items/項目

Specification/規格

Remarks/備注

Input/輸入:

Input rated voltage /輸入額定電壓

100-240 VAC

Input rated frequency/輸入額定頻率

50/60 Hz

Input range current /輸入額定電流

1.5AMAX（最大）

At 100VAC/60Hz,在100VAC/60Hz情況下

Efficiency/效率

80 % MIN（最?。?/font>

At full load and within input rated voltage

在滿載和額定輸入情況下

Input protection/輸入保護:

Rated Fuse 3.15A/250 VAC

保險絲額定值 3.15A/250 VAC

Approval by 有認證

Output/輸出:

Output voltage / 輸出電壓

0-48V + 5% VDC

No load/空載

0-48V + 5% VDC

Full load/滿載

Output current/輸出電流

0-15A

Maximum loading current

最大負載電流

Output protection/輸出保護:

Over current

過載保護

No odor, smoke, fire, plastic deformation, and excessive heat happen. 無氣味, 冒煙, 冒火,塑膠變形, 過熱.

The products are out of working when over current.

過載時，產品不工作。

Short-circuit

短路

No odor, smoke, fire, plastic deformation, and

excessive heat happen. 無氣味, 冒煙, 冒火,塑膠變形, 過熱.

Short-circuit output for 1 minute.

輸出短路1分鐘.

Safety Standard/安規標準

■ UL/CUL ■ CSA ■ PSE ■ GS ■ CE GS mark is accredited by TUV □ CB □ BS ■ SAA □ CCC ■ K-Mark □ PSB

EMC Standard/電磁兼容:

□ FCC □ C-Tick □ VCCI □ BSMI □ CE/ EMC

Others/其他:

Hi-pot Test (Primary to Secondary)

高壓測試(初級對次級)

1500VAC/10mA/1 minute

The voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage and held at that value for 60 S. 測試電壓是逐漸從0上調至規定的電壓值并保持60 秒.

RELIABILITY/可靠度:

Burn-In/燒機:100%burn-in test at 80-100%of full rated load at 35-40℃burn-in room,input voltage 220 VAC,48 hrs test for samples,24 hrs test for pilot run samples 4 hrs test for mass production.100%燒機測試在負載為80-100%狀況，燒機房溫度為35-40℃，輸入電壓為220 VAC；工程樣品測試時間為48小時,導航樣品為24小時,批量產品為4小時。

Temperature rise/溫升:In environmental temperature at 25 degrees.The maximum temperature rise measured at any point on the enclosure surface shall not exceed 50 degrees in closed carton chamber and no air flow.在環境溫度為25度下,外殼表面任意一點它的最高溫升不超過50度，實驗品是置于封閉的空氣不流通的容器中進行.

2.Mechanical Characteristics/機械特性:

Items/項目

Specification/規格

Remarks/備注

Dimension/尺寸

116*63*38mm only FYI

Length*Width*Height/長*寬*高

Case Material/外殼材料

PC,PC+ABS, or equivalent

Desk top/桌上型

Input Plug/輸入插頭

18AWG SPT-2 105℃ 2PIN UL POLARITY

BLADE / 1200 + 100mm

Output Cord/輸出線

18AWG SPT-1 105℃ / 1500+100mm

DC頭

Connector polarity/連接器極性

5.5*2.1*11 mm only FYI

Color/顏色

Black

Fine texture/顏色均勻無色差。

Drop test/跌落試驗

One time Per side, at one meter. 1米一次, 每個面。

After test, unit is not broken, disassembled, or damaged to access hazardous parts.

測試后，產品不可以損壞，裂開或者可以觸到危險部件。

3.Environmental Characteristics/環境特性:

Storage temperature/存儲溫度

-20 to +60 degrees centigrade(攝氏度)

Operating temperature/操作溫度

0 to +40 degrees centigrade. (攝氏度)

Storage RH range/相對存儲濕度

5 to 95%

RH: Relative humidity/相對濕度

Operating RH range/相對操作濕度

20 to 85%

Approved by: 核準審核制作
